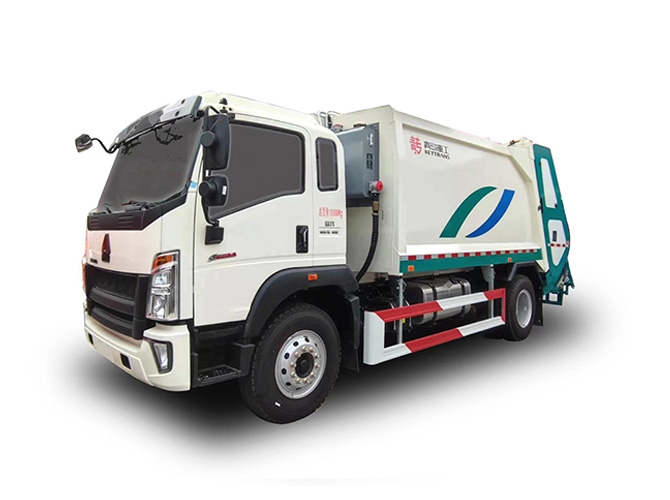

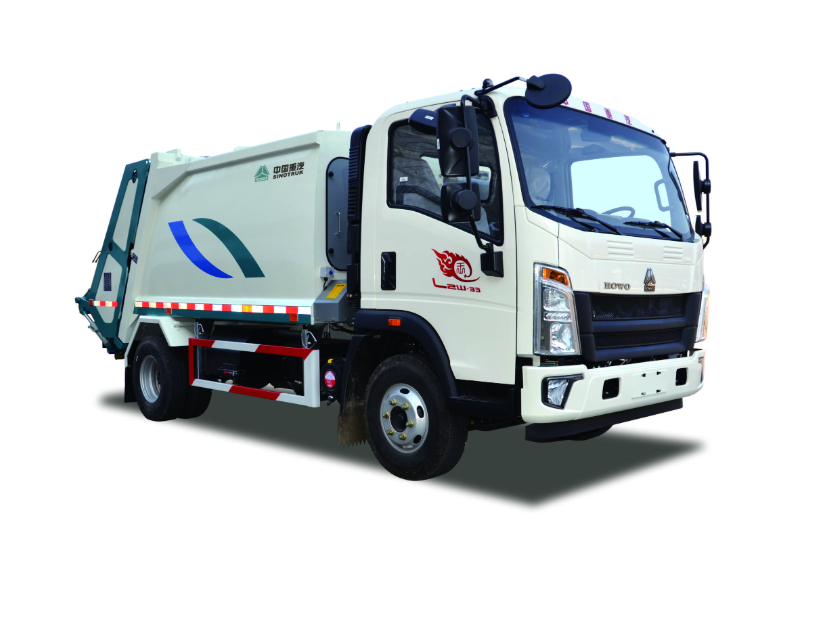

HOWO light-duty garbage compactor truck
Vehicle descriptive introduction: Qingzhuan garbage compactor truck inherits the “reliable and durable” technical features of European and American like products. With beautiful appearance, excellent performance, and humanized maneuverability, this vehicle adopts two-way compacting technology to realize the collection and transport of township household garbage. Featuring high compacting ratio, the density of compacted common household garbage can achieve 700-800kg/m3. It’s mainly suitable for the collection and transport of household garbage in bins, bags, and bulks for township residential areas, communities, large factories and mines, and institutions and universalities and incorporates multiple types of bin (bucket) tilting mechanisms to adapt to diversified garbage collection modes for different users.
Technical parameter
| Effective capacity of garbage compartment (m3) | 6.5 |
| Pre-compactor capacity (m3) | 0.9 |
| Pre-compacting cycle time (s) | ≤25 |
| Garbage dumping cycle time (s) | ≤45 |
| Pre-compactor lifting time (s) | 8～10 |
| Rated pressure of hydraulic system (MPa) | 20 |
| Control mode of hydraulic system | Manual/electric integrated |
| Cylinder type | Double-acting piston type |
| Oil pump | Duplex gear pump |
| Reversing valve | Multi-way directional valve |
| Manipulator configuration (Standard) | Standard dual square bin manipulator |
Vehicle specification
| Product model | QDZ5080ZYSZHG3WF |
| Chassis model | ZZ1087G3315F183 |
| Gross weight (kg) | 8280 |
| Overall dimensions (mm) | 6461,6695,6745×2300×2520 |
| Wheelbase (mm) | 3280 |
| Engine model (kw) | WP3NQ160E61 |
| Maximum traveling speed (km/h) | 95 |
